Dakota Digital 1960-1963 Chevrolet Truck VHX Instrument Gauge Cluster-Black Background / Blue Illumination VHX-60C-PU-K-B
Questions? Call us at 800-544-1955
$878.75
DESCRIPTION

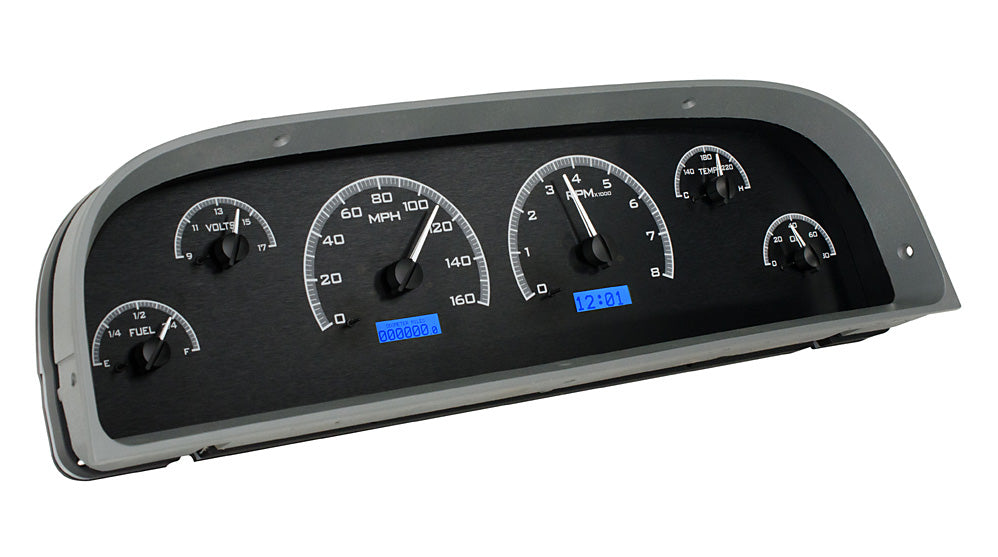

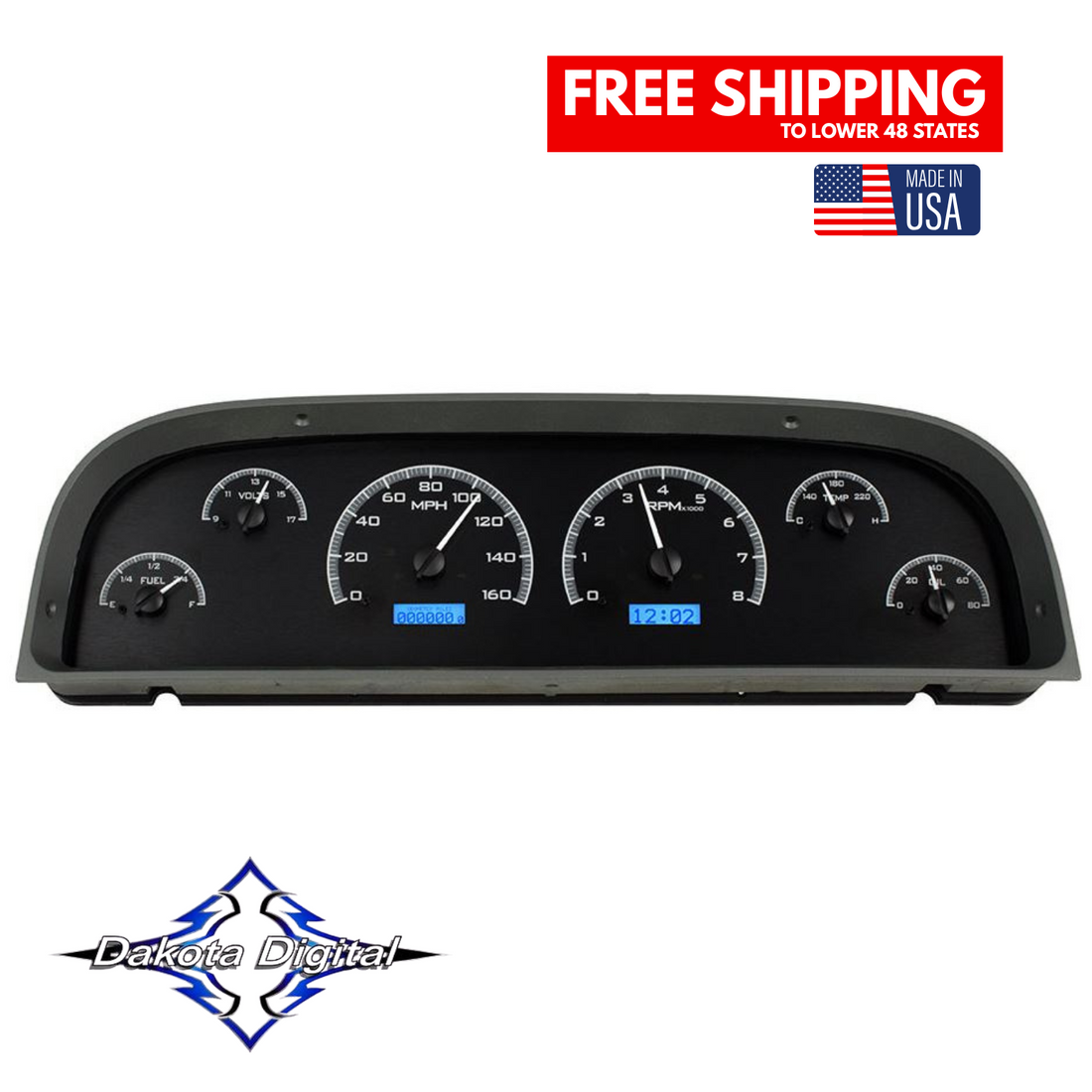

Dakota Digital 1960-1963 Chevrolet Truck VHX Instrument Gauge Cluster-Black Face / Blue Illumination VHX-60C-PU-K-B
Does Not Include Instrument Cluster Bezel
The Importance of Working Gauge Clusters
There are many different parts that make up your vehicle. Each one serves its own purpose and has value to the functionality of your vehicle. Even the smaller parts you may not think of right of the bat, are important to the overall workings of your car. For example, the instrument cluster. The instrument cluster is a broad term for all of the tracking meters on your dash. Although small, these instrument clusters are important and helpful in tracking the status of your vehicle. You want to be sure they are in working order at all times. This specific unit is for the 1960-1963 Chevy Truck as the VHX series. It has a black face with blue illumination.
Dakota Digital Quality Products
When it comes to your vehicle working properly, allowing you to drive safely from Point A to Point B, it matters where you purchase your parts from. As the saying goes, “You get what you pay for”. You want to be sure you are getting quality products that will work and last for years to come. Dakota Digital takes pride in producing high-quality products you can rely on for your vehicles. With a facility right here in the United States, all products are designed, developed and manufactured start to finish by people who really care. You can rest assured you are getting the best of the best products along with outstanding customer service.
| Analog Gauges |
| Speedometer |
| ·0 -160 MPH (optional metric version 0- 255 kmh) |
| Tachometer |
| ·0- 8,000 RPM |
| Oil Pressure |
| ·0- 80 psi |
| Water Temperature |
| ·100- 260ºF (optional metric version 40- 120ºC) |
| Fuel Level |
| ·E, 1/4, 1/2, 3/4, F |
| Voltmeter |
| ·9- 17 VDC |

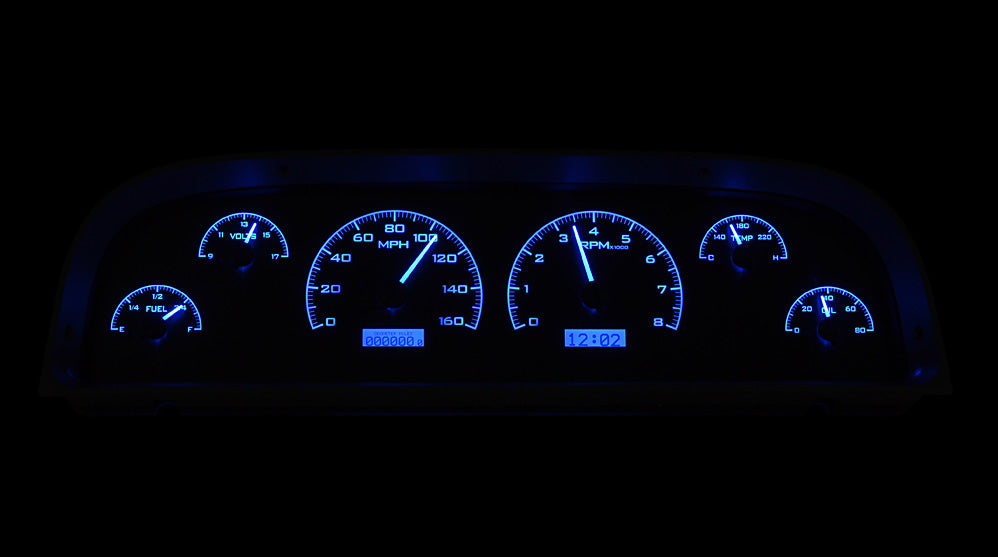

| Lighting |
| ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
Digital Message Centers |
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
**Not all OEM indicator lamp functions will be replaced.
|
|
Included Sensors |
| Water Temperature |
| ·1/8" NPT, ground isolated sensor with a 10 ft harness. |
| Oil Pressure |
| ·1/8" NPT solid state sensor with a 10 ft harness. |
| Cable Driven Speed Sensor/ Generator |
| ·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.) |
| Bushings |
| ·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. |
| Control Box Dimensions |
| 5.5" x 3.5"x 1" |
|
Calibration |
| Pushbutton |
| ·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers. |
