DESCRIPTION

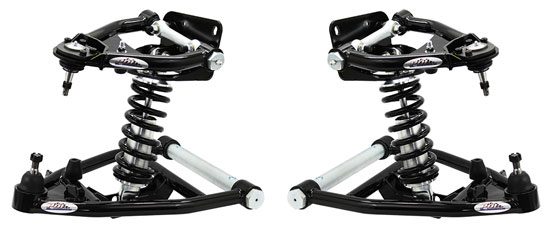

1963-1970 Chevy C10, GMC C15 Tubular Control Arm & Coil Over Suspension Kit, Stage 3+

Our high performance coil over suspension kit for the 1963-70 Chevy C10 and GMC C15 truck is far superior in handling and performance. Our tubular upper and lower control arms vastly improve front end performance and handling by offering improved geometry and more ground clearance than factory stamped units. All new Aldan Phantom Series single adjustable coilovers deliver superior handling and ride quality for a drastic improvement over stock suspension. Aldan’s high tensile coil springs are designed as a direct fit and true stand alone coil over suspension. Ride height adjustable spring seats allow adjustment up to 2.0" drop. Exclusive lower control arm shock positioning takes performance levels to a very high standard. Great for street and track applications.

Kit includes:

• Deluxe Tubular Control Arms with built in tuning capabilities
• 1.250" x .156 wall DOM tubing
• Upper coil over and control arm mounts
• Gloss black powder coat
• 4 - Ball Joints
• 4 - Cross Shafts
• Aldan American Billet Coil Overs with Street / Strip Coils for Small Block & Big Block Chevy
• Mounting Hardware
• Limited lifetime warranty

Notes:
Complete and ready to bolt on. Ride Height Adjustable from stock height - 2.0” drop. Serviceable and rebuildable Aldan American billet coil overs.
Small Block Spring Rate = 450#, Big Block Spring Rate = 550#

Fits:1963 1964 1965 1966 1967 1968 1969 1970 Chevy C10, GMC C15 trucks
