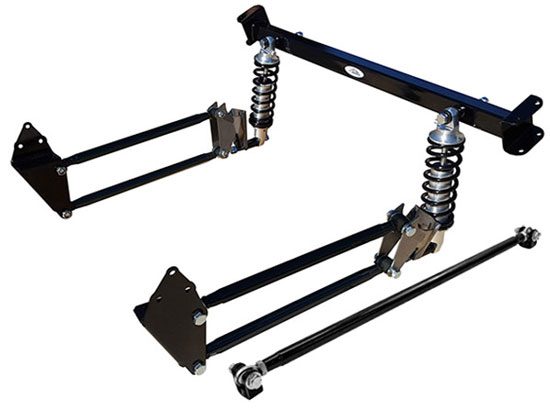

1947-1953 Chevrolet & GMC Pickup Truck 3100 4-Link Kit

Product ID: 538
Part #: RES-47PO

Questions? Call us at 800-544-1955

Regular price



1947-53 Chevy Truck and GMC 3100 Truck coil-over 4-link rear suspension provides the best ride for any Classic truck. These 4-link kits attach directly to the stock frame rails and the adjustable axle brackets let you set the height in one of three positions. A bolt-in upper coil-over crossmember is included. All brackets are made from 1018 mild steel.
Our 4-link bars are double adjustable and made from DOM tubing. The double ajustable feature not only allows for precise rear end positioning, but allows you to adjust your pinion angle as well. Lowers truck 4-6"
Kit includes:

Upper Shock Crossmember (Black Powder Coated)
Frame Brackets (Black Powder Coated)
Axle Mount Brackets for 3.00" Diameter Axle tubes
Lateral Panhard Bar (Bolt On, Black Powder Coated Bar Brackets)
4 Bars Set with Poly bushings (Black Powder Coated)
Billet Coil-over Shocks, 250lb/in (Black Out available)
Limited Lifetime Warranty

Made in the USA
Will not fit if using Mustang fuel tank that requires a front support cross member.
Shocks are single adjustable with 11 position rebound dampening


We have a knowledgeable support staff here to assist you in any way we can before, during, and after your purchase! We have decades of personal experience installing these products and we offer unlimited tech support for all verified purchases! When you call Tuckers (800) 544-1955, you’ll talk to a fellow classic vehicle enthusiast, not just another order taker!
