OBD-II / CAN Interface Module BIM-01-2
Questions? Call us at 800-544-1955
$113.95
DESCRIPTION

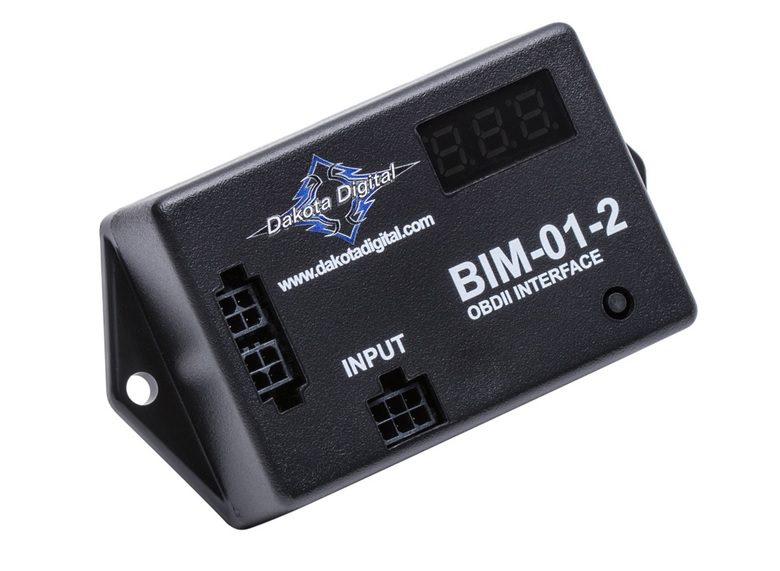

OBD-II / CAN Interface Module BIM-01-2
Allows you to plug directly into the engine diagnostic port, extracting engine and transmission data from the vehicle's computer (ECM)
Will collect and output the following information to Dakota Digital Instrument Systems
Available on most vehicles (see below):
Speedometer
Tachometer
Engine Temperature
Check Engine Indicator
Vehicle specific:
Intake Air Temperature
Transmission Temperature
Ambient Air Temperature
Gear Position
Oil Pressure
Boost Pressure
Due to the various factory and modified ECM's, additional data including (Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, and Gear Position) may be available, but will vary from application to application. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp, Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, Boost or Gear Position displays since this is a function of the ECM and matching OEM functional sensors.
The BIM-01-2 is designed to decode the information provided by the ECM through OBD-II and supply this information to the RTX, HDX, VHX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness. Earlier instrument systems with an aluminum control module are not capable of BIM connectivity
The BIM-01-2 is designed for J1850 and CAN OBD protocols only.
Compatible with OBDII protocols SAE J1850 VPW, SAE J1850 PWM and ISO 15765 CAN 500k 11 bit identifiers that follow the SAE J1979 PID protocol.
***Ships UPS Only***
